Performance use:
This machine melts the international advanced technology and a Chinese national condition body. It through the specialpulp, the dye printing craft, anchors the gold shifts to the fabric surface, also can cause the fabric corrugation.

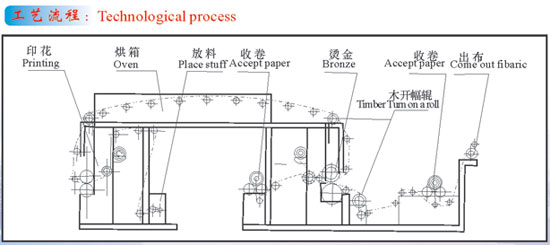

It puts the material intaglio dye printing unit by a group, the air operated thermo-compression unit, the dry drying oven and receives the material unit, the electrical machinery uses the frequency conversion control, the control balance, saves the energy.
Technical parameter:
| Gate: 1600-1800m/m |
vehicle speed: 5-40m/min may move |
| Hot roller power: 9×2kw=18kw |
temperature: 50-250 ℃ |
| Hot roller diameter: ?350m/m |
silica gel roller diameter: ?390m/m |
| Drying oven power: 18×2kw=36kw |
|
| Transmission power: 6.75kw |
installing equipment total output: 60.75kw |
| Contour heart inch: 10620m×2600m×2700m |
|
|
